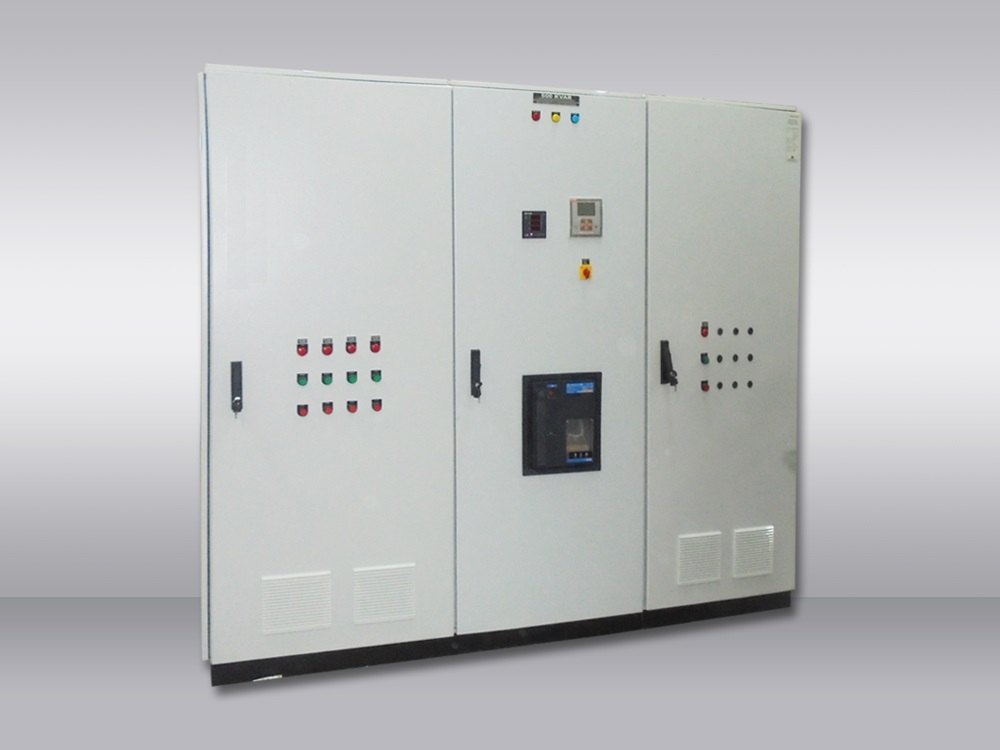

RTPFC PANEL

Name: RTPFC PANEL
Brand: SWAN ENTERPRISES
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RTPFC PANEL Specification

Thickness
2 mm

Features
Auto & Manual Mode, Overload/Short Circuit Protection, Harmonic Filtering Option

Control System
Microprocessor / Automatic Control

Rated Current
Up to 2000A

Way
Custom as per requirement

Rated Insulation Voltage
690V

Cover Material
Mild Steel with Powder Coating

Rated Operation Voltage
415V AC

Base Material
Other

Components
Microprocessor Controller, Contactor, Capacitor, Reactor, MCB, MCCB, Current Transformer, Fuses, Busbar

Connectivity Type
Panel Mounted Terminals

Cabinet Material
CRCA Mild Steel

Operating Voltage
415V AC

Protection Class
Class I

Cooling System
Natural Air or Forced Ventilation

Protection Level
IP42 / IP54

Panel Type
Floor Mounted

Current Rating
Up to 2000A

Product Type
RTPFC (Real Time Power Factor Correction) Panel

Material
Other

Surface Finish
Powder Coated

Standard
IEC 61439, IS 8623

Surface Color
Siemens Grey (RAL 7032)

Rated Voltage
415V AC

Frequency (MHz)
50 Hz

Maximum Output Current
Up to 2000A

Dimension (L*W*H)
Customized (Standard: 1800 x 1200 x 600 mm)

Application
Industrial/Commercial Power Factor Improvement

Display Type
Digital (LCD/LED) Display

Power Factor Range
Up to 0.99 (Lagging to Unity)

Altitude
Up to 2000 meters above sea level

Ingress Protection
Dust and Moisture Resistant

Busbar Material
Electrolytic Copper / Aluminum

Ambient Temperature
-10C to +50C

Earthing
Dual Earthing Provision

Panel Mounting Type
Floor / Wall Mounted Option

Relay Type
APFC / RTPFC Intelligent Controller

Capacitor Steps
As per requirement (e.g. 10kVAR to 50kVAR steps)

Installation Locations
Indoor (Standard) / Outdoor (on request)

Indication Lamps
R, Y, B Phase, Capacitor ON, Fault

Compliance
CE, CPRI Approved (on request)

About RTPFC PANEL

A Real-Time Power Factor Correction (RTPFC) panel is an advanced electrical system designed to immediately correct power factor fluctuations, typically within 20 milliseconds, using thyristor switched solid-state components. It ensures near-unity power factor for fast-changing loads, reducing kVAh/RKVAH penalties, preventing harmonic resonance, and extending component life.

Key Features and Components

Thyristor Switching Module (TSM): Uses thyristors instead of contactors for transient-free, instantaneous switching, allowing unlimited operations without wear.
Zero Crossover Technology: Switches capacitors at zero-voltage crossover to eliminate surge currents and voltage transients.
Detuned Reactors: Protects capacitors from harmonic amplification (3rd, 5th, up to 13th order) and avoids resonance, say Clariant Power System Ltd. and www.powersoldevices.com.
Intelligent Controller: Microprocessor-based unit for rapid monitoring and accurate power factor control.

Benefits

Elimination of Penalties: Reduces electricity bills by maintaining high Power Factor (PF) close to unity, say Clariant Power System Ltd. and cospower.
Fast Response Time: Operates in under 20-60 milliseconds, ideal for rapidly changing loads (20ms).
Long Life: Minimizes wear on components compared to traditional APFC.
System Protection: Reduces kVA demand, optimizes generator performance, and prevents damage to sensitive electronic equipment.

Applications
RTPFC panels are vital in industries with fluctuating loads, including:

Welding shops, robotic welding, and forging.
Textile, paper, and cement industries.
Bottling and FMCG packaging lines.
Variable Frequency Drive (VFD) heavy operations.

Technical Specifications

Capacity: 10 KVAR to 1000 KVAR+ (modular/upgradable).
Voltage: 415V, 480V, 690V, up to 1000V.
Steps: Typically 4 to 12 stages.
Protection: MCB/MCCB/HRC fuses for each step.

RTPFC panels are essential for "modernizing energy management" in dynamic industrial environments.

Intelligent Power Factor Correction

The RTPFC Panel utilizes advanced microprocessor-based controllers to automatically maintain a high power factor, compensating from lagging to unity (up to 0.99). This ensures energy is used efficiently, reducing overall electricity bills and improving system stability. The digital LCD/LED display enables easy monitoring and real-time diagnostics, making it ideal for diverse industrial or commercial environments.

Robust Design for Versatile Applications

Crafted from mild steel with Siemens Grey powder coating, this panel offers durability, dust and moisture resistance (IP42/IP54), and operates within a wide temperature range. It supports both floor and wall mounting, adapting to varied space requirements. With optional harmonic filtering and overload/short circuit protection, the panel safeguards connected equipment in demanding settings.

Customizable Configuration and Installation

The RTPFC Panel is available in customizable dimensions (standard: 1800 x 1200 x 600 mm) and capacitor steps to match specific load demands. It includes dual earthing for enhanced safety and can be installed both indoors or outdoors (on request), making it suitable for a wide range of infrastructure projects across industrial and commercial sectors.

FAQ's of RTPFC PANEL:

Q: How does the RTPFC Panel improve power factor in electrical systems?

A: The RTPFC Panel uses automatic and intelligent controllers to dynamically switch capacitors as needed, ensuring the power factor stays close to unity (up to 0.99), reducing energy wastage and minimizing penalties from utility companies.

Q: What are the recommended installation locations and environmental conditions for this panel?

A: The panel is designed for indoor use as standard, but can also be installed outdoors upon request. It operates reliably at altitudes up to 2000 meters and within ambient temperatures ranging from -10C to +50C, making it suitable for various Indian environments.

Q: When should harmonic filtering options be considered in the RTPFC Panel?

A: Harmonic filtering should be included when the installation site experiences high levels of harmonic distortion from non-linear loads, such as drives or electronic equipment, to ensure system stability and prolong equipment lifespan.

Q: Where can the RTPFC Panel be mounted, and how is it customized for different spaces?

A: The panel can be floor or wall mounted, allowing flexibility in placement. Dimensions and number of ways are customizable based on operational requirements, making it suitable for both compact and large-scale power distribution rooms.

Q: What is the process for commissioning and using the RTPFC Panel?

A: After installation and wiring to the main power bus, the panel is commissioned through digital controls. The intelligent controller automatically detects system power factor, manages capacitor switching, and provides real-time information via digital displays and indication lamps.

Q: How does the panel ensure operational safety and reliability?

A: Equipped with dual earthing, overload and short circuit protection, and IP42/IP54-rated enclosures, the panel is built to protect against dust, moisture, and electrical hazards, providing reliable service in demanding industrial or commercial environments.

Q: What primary benefits does the RTPFC Panel offer to industrial and commercial users?

A: By improving the power factor, the panel reduces electricity bills, prevents utility penalties, increases equipment life span, and ensures stable, efficient operation of electrical networks. It is also compliant with international and local standards (IEC 61439, IS 8623) and can be CPRI and CE approved on request.
