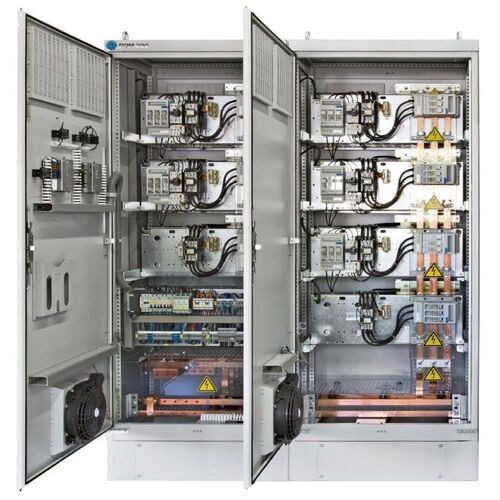

THYRISTOR PANEL

Name: THYRISTOR PANEL
Brand: SWAN ENTERPRISES
Price: 100000.0 INR
Availability: InStock

Price 100000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

THYRISTOR PANEL Specification

Power Rating
300 kVA, 3 Phase, 4 Wire

Surface Finish
Powder Coated

Rated Voltage
110-215 Volt (V)

Frequency
50-60 Hertz (HZ)

Features
Good Quality

Warranty
1 Year

Material
MS

THYRISTOR PANEL Trade Information

Minimum Order Quantity
1 Number

Delivery Time
5-10 Days

About THYRISTOR PANEL

A Thyristor Panel is an industrial electrical control system used for precise,, high-speed, and efficient modulation of electrical power, primarily regulating heating elements, furnaces, and motor speeds. These panels utilize solid-state thyristor (SCR) technology to manage voltage, providing superior performance over mechanical contractors by ensuring rapid switching and reducing energy waste.

Key Features and Components

Power Regulation: Utilizes single or three-phase SCRs for phase-angle or burst-firing (zero-cross) control.
Control Mechanism: Incorporates PID/PLC controllers for closed-loop, automatic, or manual control of voltage and current.
Safety & Protection: Equipped with fast-acting fuses, MCBs/MCCBs, over-temperature trips, phase loss detection, and alarm systems.
Monitoring: Digital or analog instruments monitor voltage, current, and frequency.
Cooling: Panels are designed with forced air or air-conditioned cooling to handle high temperatures.

Applications

Industrial Heating: Furnaces, ovens, kilns, and dryers.
Manufacturing: Heat transfer printing, plastics extrusion, and textiles.
Processing: Chemical processing, pharmaceutical drying, and paper/pulp production.
Utilities: HVAC systems, de-humidifiers, and boilers.

These panels are designed for reliability, providing smooth power control and extending the life of heating elements by minimizing thermal cycling.

Thyristor power regulator-based instrumentation control panel for heating application | Thermal Control Business Update | HVAC-R Industry
18 Sept 2023 Thyristor control panels are used to regulate the power supplied to heating elements. They are ideal for industrial applications w...

Thermal Control Business Update
Single-Zone Thyristor-Based Control Panel for Furnace Oil Heating ( ...
Single-Zone Thyristor-Based Control Panel for Furnace Oil Heating (200KW) Designed for furnace oil heating systems up to 200 kW, s...

Libratherm Instruments
Thyristor Control Panel Manufacturer from Ludhiana
The Thyristor Control Panel is a highly efficient and reliable power control solution designed to regulate and control electric he...

escofurnaces.co.in

Show all

Reliable Power Distribution

The Thyristor Panel is engineered to deliver dependable power management for industrial environments. Its 300 kVA capacity ensures it can handle substantial loads while maintaining stability. The use of mild steel and powder coating provides both sturdiness and resistance to corrosion, making it suitable for challenging operational settings.

Efficient Control and Operation

This panel utilizes advanced thyristor technology for seamless power modulation. The 3 Phase, 4 Wire system allows for efficient distribution and balanced operation. With a voltage range of 110-215V and frequency support of 50-60 Hz, it adapts easily to varied electrical requirements.

FAQ's of THYRISTOR PANEL:

Q: How is the thyristor panel used in industrial applications?

A: The thyristor panel is installed to regulate and distribute electrical power in industrial setups, ensuring precise control over voltage and current within large-scale operations.

Q: What are the key benefits of the powder-coated finish on the panel?

A: Powder coating provides a durable, corrosion-resistant layer, enhancing the lifespan of the panel and ensuring it continues to operate reliably in demanding industrial conditions.

Q: When should routine maintenance be performed on this panel?

A: Routine maintenance is recommended at least once every six months, or more frequently in harsh environments, to ensure continued performance and identify any signs of wear.

Q: Where can the thyristor panel be installed?

A: This panel is designed for use in industrial facilities, manufacturing plants, and other high-power applications throughout India, where consistent and secure electricity distribution is required.

Q: What process is involved in installing the 300 kVA, 3 phase, 4 wire panel?

A: Installation involves securely mounting the panel, connecting it to the main power supply, and calibrating its settings to match the facility's electrical needs, all performed by qualified technicians.

Q: How does the warranty coverage work for this product?

A: The thyristor panel comes with a 1-year warranty covering manufacturer defects and faulty components, offering assurance and support for replacement or repair if needed.
